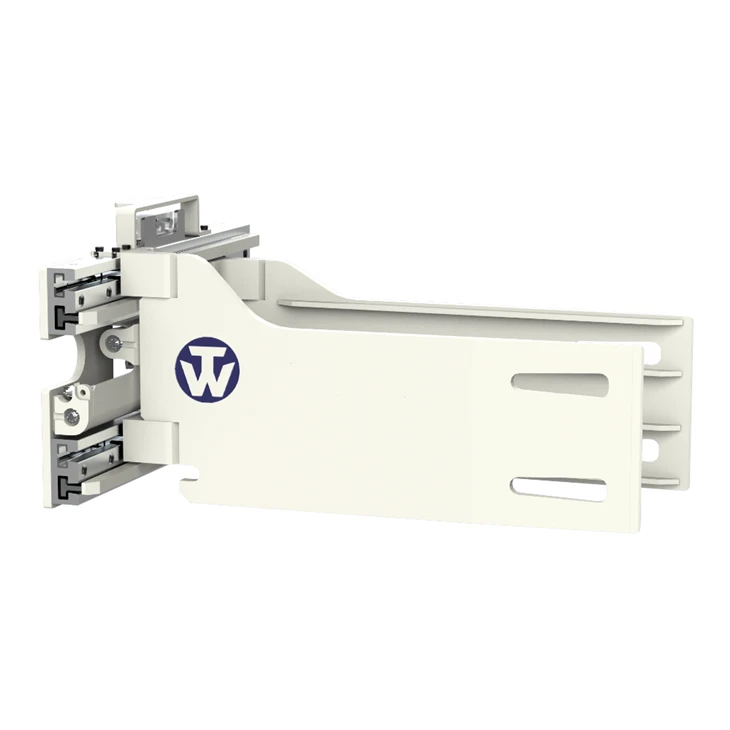

Bale Clamp - E Series- Sab Hloov

Lub Bale clamp tuaj yeem nyab xeeb thiab muab cov hnab ntim muag muag, xws li hnab ntim paj, thiab lwm yam.

Xa kev nug

Khoom Taw qhia

Wontonne-Forklift-Attachments-Bale-clamp-side-shifting-type

Nta:
1. Lub nrawm-tso tawm sab-ua haujlwm valve tuaj yeem qhib ua haujlwm kom tiv thaiv cov khoom los ntawm kev poob thaum lub tsheb poob thaum cov roj hluav taws xob yog kev poob siab.
2. Tus qauv yooj yim, qhov hnyav yog me me, thiab kev ua tau zoo ntawm lub forklift yog maximized.
3. Cov kabmob zawv zawg ntawm cov khoom tshwj xeeb yog lubricating nws tus kheej, ruaj, thiab yooj yim los hloov.
4. Sab caj npab ua tiav cov vuam sib xyaw ua ke ntawm cov castingsings, nrog lub zeem muag zoo thiab muaj zog.
5. Qhov kev sib txuas ntawm cov roj raj kheej thiab caj dab thiab lub tog raj kheej kheej yog qhov ua kom pom tseeb, uas ua kom pom tseeb tias thaum ob txhais tes clamp tau qhib thiab ua rau sagging.

Tsis

Lub peev xwm	Yam ris Nruab nrab	Tus qauv Tsis yog.	Mounting Hom	Kev qhib Qho deb	Txhais caj npab Qho ntev	Txhais caj npab Qhov siab	Caj npab tuab	Tus ncej Qhov dav	Rov ntsug Nruab nrab ntawm Lub ntiajteb txawj nqus	Tav toj Nruab nrab ntawm Lub ntiajteb txawj nqus	Qho hnyav	Ua tau rau Qhov tuab
kg	lub hli			O lub hli	A lub hli	B lub hli	D lub hli	C lub hli	VCG lub hli	Hcg lub hli	kg	Li lub hli
E series Bale Clamps (Sobeshifting)
1900	500	BCS20E20E -106 a	ISO 2A	450~1730	991	418	71	1040	220	281	392	128
1900	500	BCS3E -106 b	Iso 3a	450~1730	991	418	71	1040	215	270	418	133
1900	500	BCS20E20E -107 a	ISO 2A	450~1730	1195	418	74	1040	194	357	434	128
1900	500	BCS3E -107 b	Iso 3a	450~1730	1195	418	74	1040	210	341	463	133
2700	500	BCS30E -108 a	ISO 2A	565~1910	991	464	78	1016	232	280	521	148
2700	500	BCS30E -108 b	Iso 3a	565~1910	991	464	78	1016	235	282	515	148
2700	500	BCS30E -109 a	ISO 2A	560~1905	1195	464	80	1016	225	353	572	148
2700	500	BCS30E -109 b	Iso 3a	560~1905	1195	464	80	1016	229	354	565	148

* Nrog rau kev tsim kho thev naus laus zis, kev teeb tsa thiab cov tsis sib haum ntawm peb cov khoom yuav hloov pauv yam tsis muaj kev ceeb toom; Yog tias tsis ntseeg, qhov kev muag khoom tshwj xeeb ntawm peb lub tuam txhab yog lub ntsiab tseem ceeb
